Turbo Installations to Diesel Engines With Mechanical and Electronic Fuel Systems

Our aftermarket diesel turbo conversions generally create power and torque increases of 40%-50% above standard at the driving wheels. This amount creates a pulling increase, which allows 2 gears taller to be used, which means if the standard vehicle needs 3rd gear to tow over a certain hill, the turbo vehicle can easily use 5th gear and maintain better speeds towing over the same hill. Garrett water-cooled and internally wastegated turbos are used and have given excellent durability and reliability in many hundreds of conversions since 1975, with many exceeding 400,000km without needing repairs.

With the ideal size turbo used, boost begins at 1000 RPM or less and reaches wastegate control maximum boost as low as 1800RPM which, on a diesel engine, gives a very wide spread of torque with very effective takeoff power when towing. To give the best engine life and reliability, our conversions include a coolant loss alarm, an overboost safety valve, an oil cooler in the turbo supply line, and a major engine tune-up with Dyno measurements before and after.

For engines with electronically controlled mechanical fuel injection pumps, an electronic interceptor is required to give the best tune and power. In the beginning of aftermarket turbocharging of diesel vehicles in Australia, the market was sceptical, with the product always having to prove itself. Now, 36 years and thousands of vehicles converted later, the older technology engine with simple turbocharging is superior in reliability, cost, and durability to the modern complex factory products.

Following is a series of before and after dyno graphs of the more common diesel conversions as applied to vehicles by MVT. Our dyno runs are usually in top gear with the ramp rate closely matching on-road acceleration to best show what happens when you drive your vehicle.

Quick links:

TOYOTA DIESEL 3L - 2.8 LITRE

TOYOTA DIESEL 5L - 3 LITRE

TOYOTA DIESEL H - 3.9 LITRE

TOYOTA DIESEL IHZ - 4.2 LITRE RWD 100 SERIES

TOYOTA DIESEL IHZ - 4.2 LITRE RWD 80 SERIES

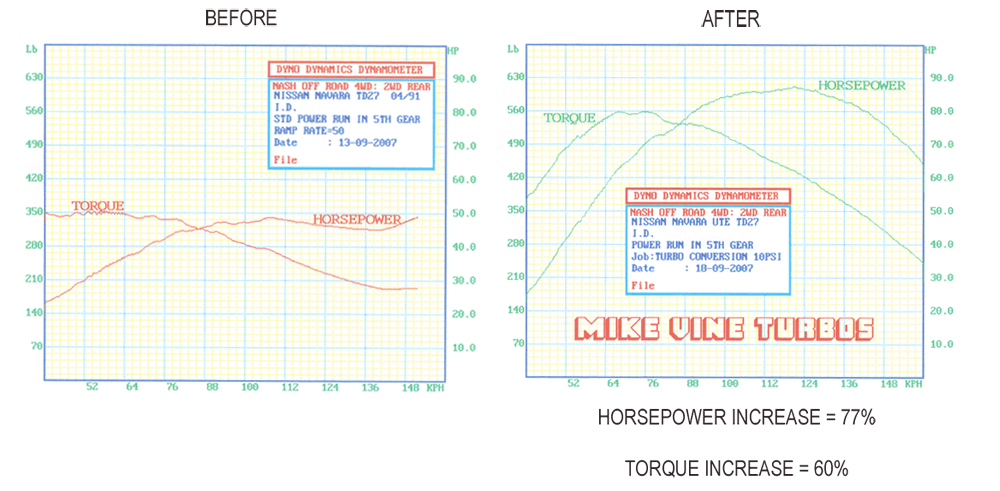

NISSAN DIESEL TD 27 - 2.7 LITRE

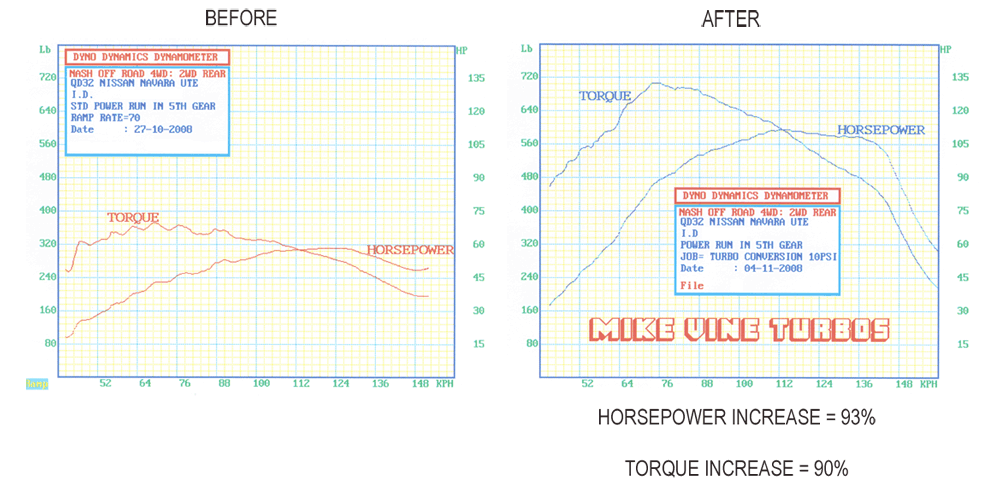

NISSAN DIESEL QD 32 - 3.2 LITRE

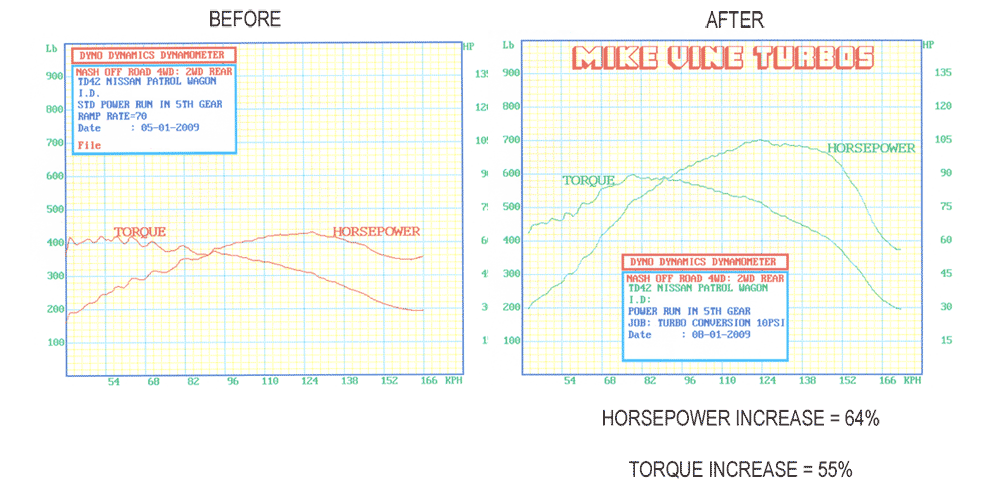

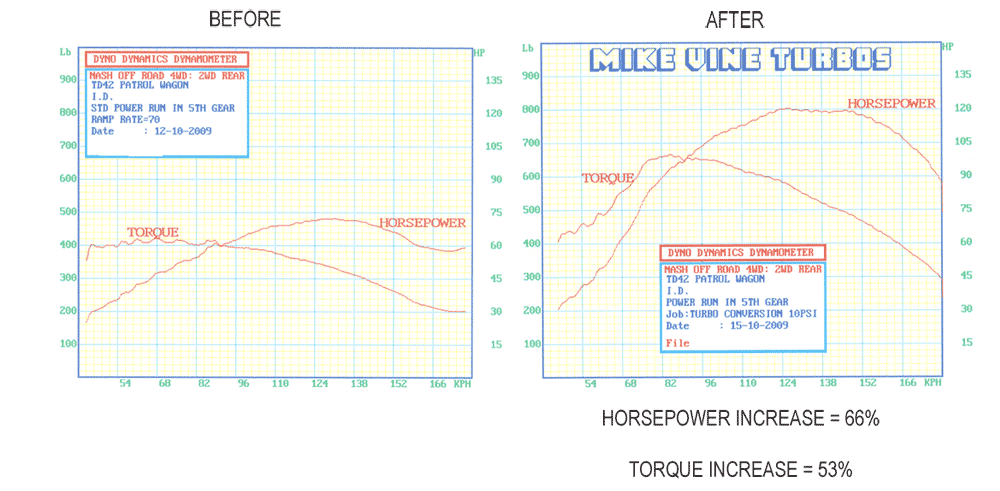

NISSAN DIESEL TD42 GQ WAGON - 4.2 LITRE

NISSAN DIESEL TD42 GU WAGON - 4.2 LITRE

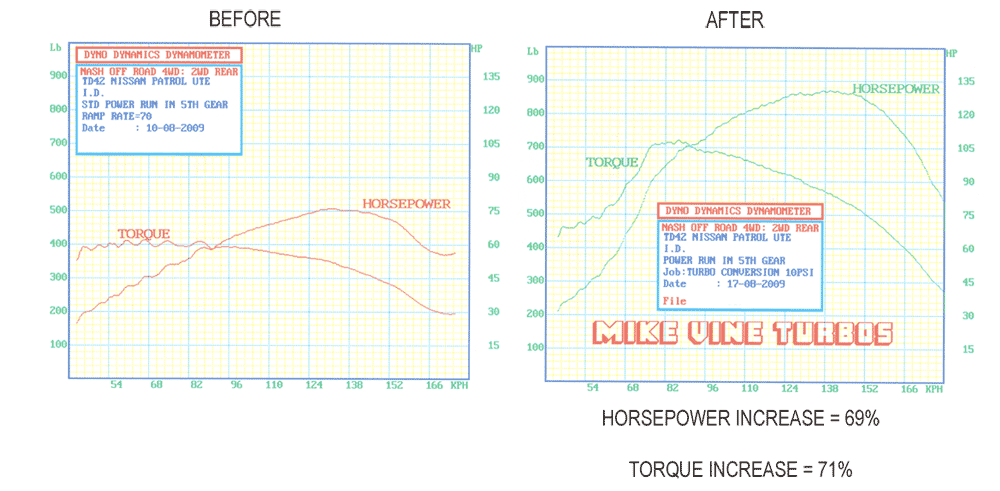

NISSAN DIESEL TD42 GQ UTE - 4.2 LITRE

NISSAN DIESEL TD42 GU UTE - 4.2 LITRE

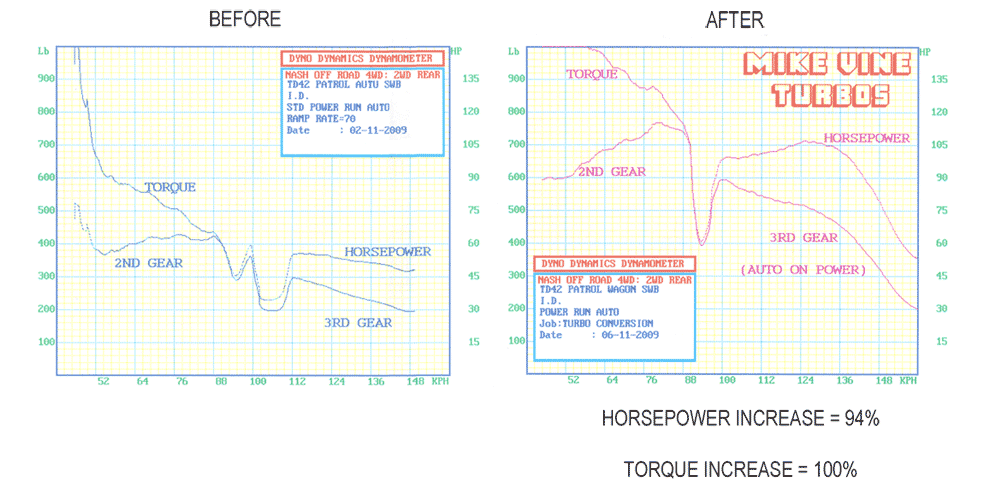

NISSAN DIESEL TD42 AUTO GQ - 4.2 LITRE

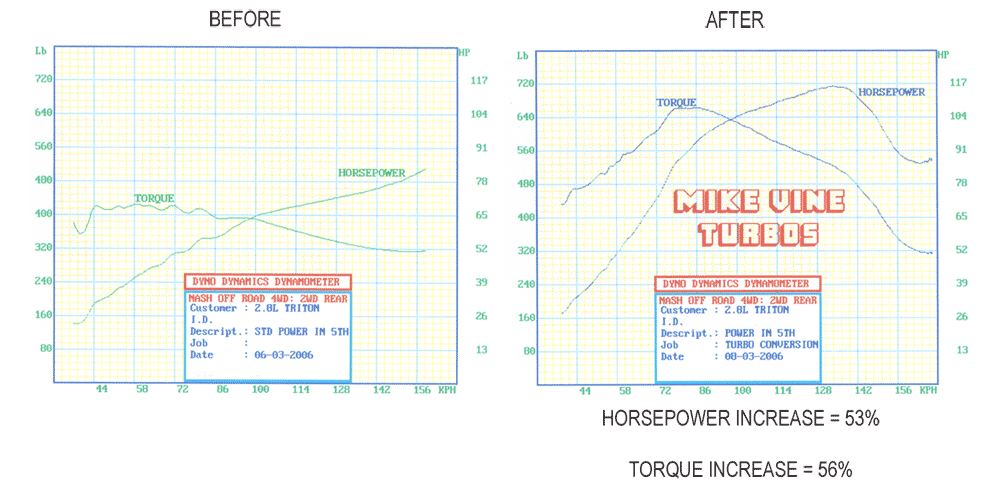

MITSUBISHI DIESEL TRITON 4M4O - 2.8 LITRE

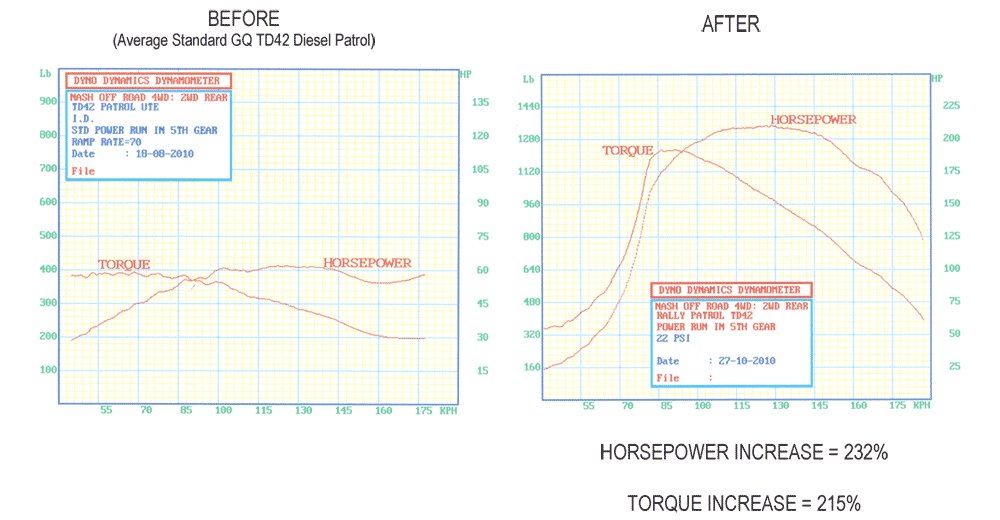

NISSAN DIESEL TD42 GQ RACE UTE - 4.2 LITRE
