Power Up Conversions to Factory Turbo Diesel Engines With Electronic Fuel Injection Management

Most of these vehicles come with either Direct Injection or Common Rail fuel systems. The Direct injection engines give a greater percentage power increase (up to 40%) than the Common Rail ones with equal modifications. Some recent small displacement engines have high power output (eg: 2.5L Navara) with high boost which gives a smaller margin of potential power increase compared to earlier engines (eg: ZD30T Patrol and Navara) which power up effectively.

New Turbo Sales

Turbo Reconditioning & Repairs

Turbo Installations to Petrol

The general changes for power ups on these engines include exhaust system improvement, electronic interceptor, fuel system maintenance, boost control and intercooler improvements where required, carbon cleaning and Dyno tuning. Some vehicles with known design faults need modification before power up work to maintain reliability with increased power.

Once powered up the driving performance, pulling power and throttle response are dramatically improved especially on the below normal power vehicles. Below is a group of before and after Dyno sheets of power up conversions on factory turbo diesel engine vehicles with electronic fuel control by MVT.

Quick links:

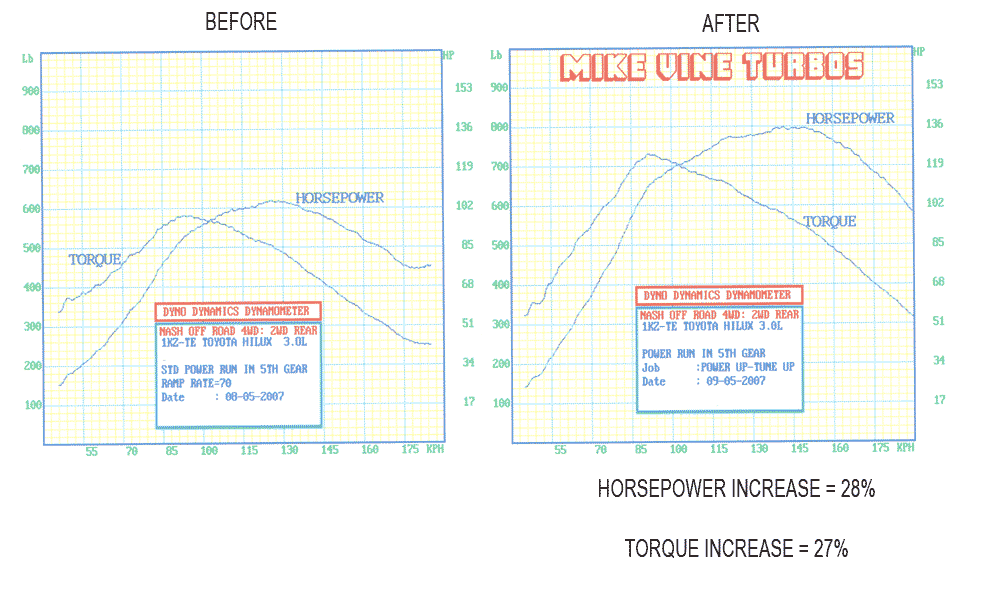

TOYOTA DIESEL IKZ - TE - 3 LITRE

Click on the image for the PDF version.

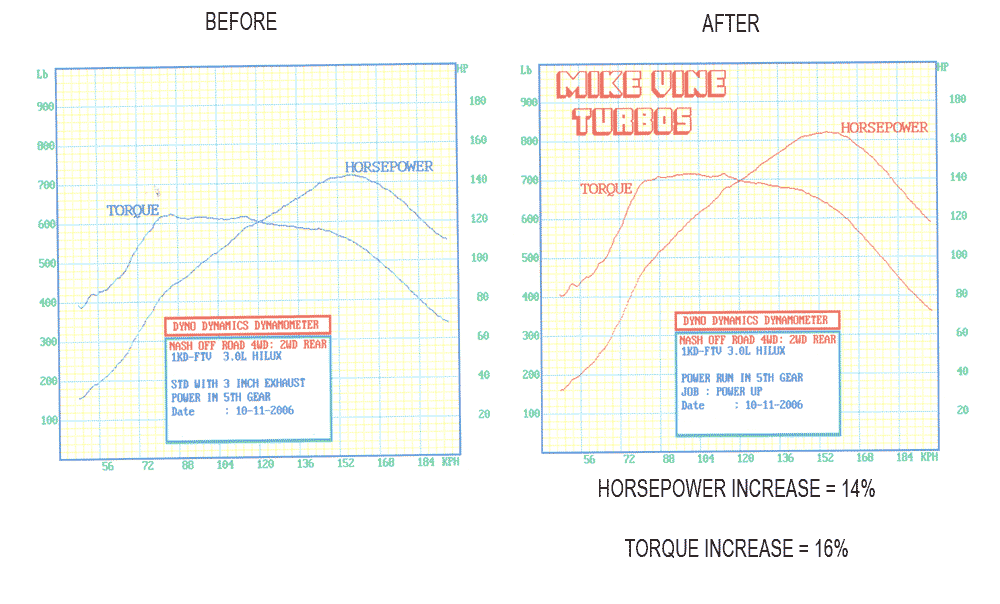

TOYOTA DIESEL IKDFTV – 3 LITRE

Click on the image for the PDF version.

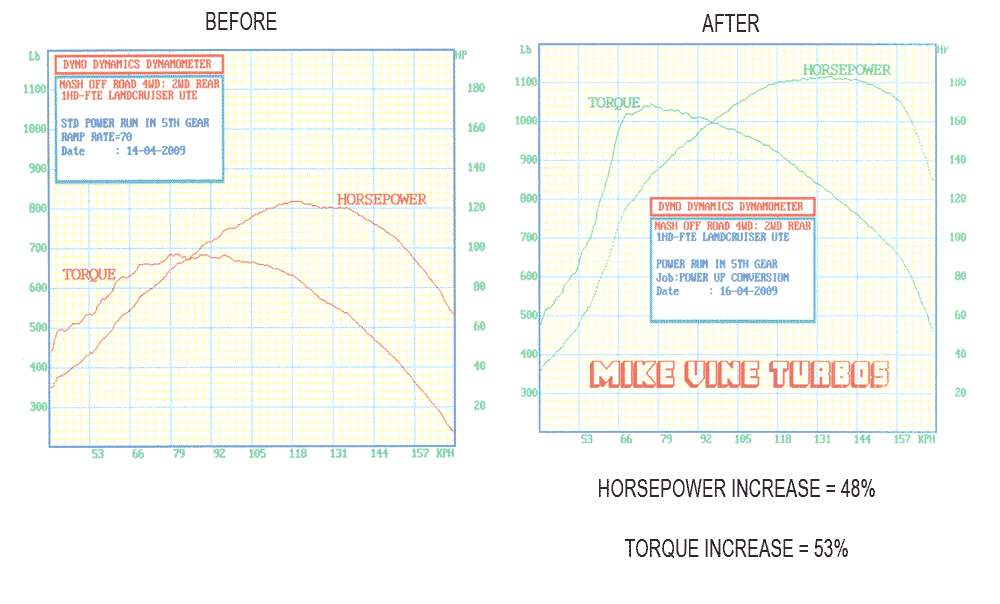

LANDCRUISER IHDFTE UTE - 4.2 LITRE

Click on the image for the PDF version.

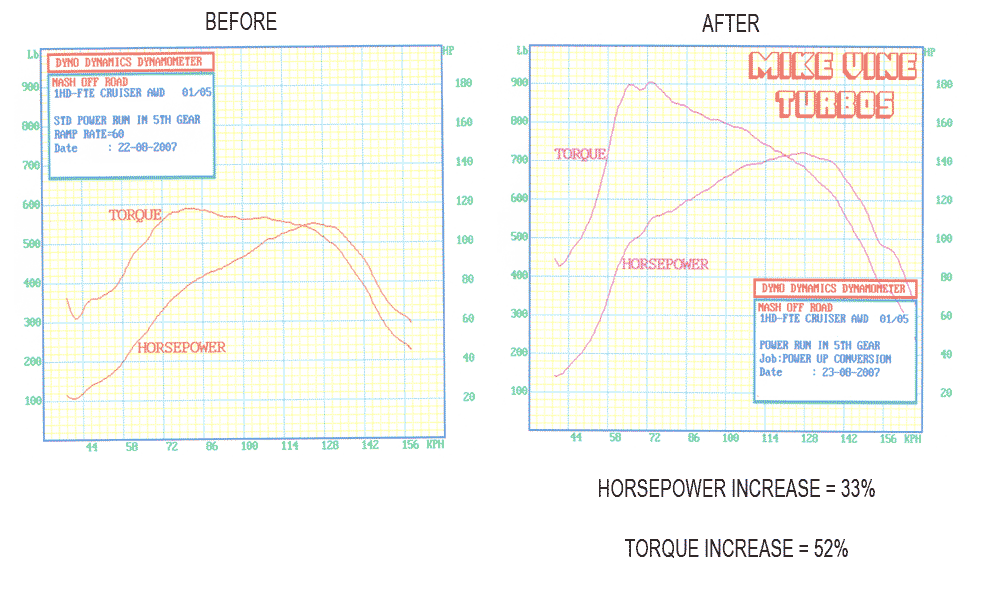

LANDCRUISER WAGON IHDFTE AWD - 4.2 LITRE

Click on the image for the PDF version.

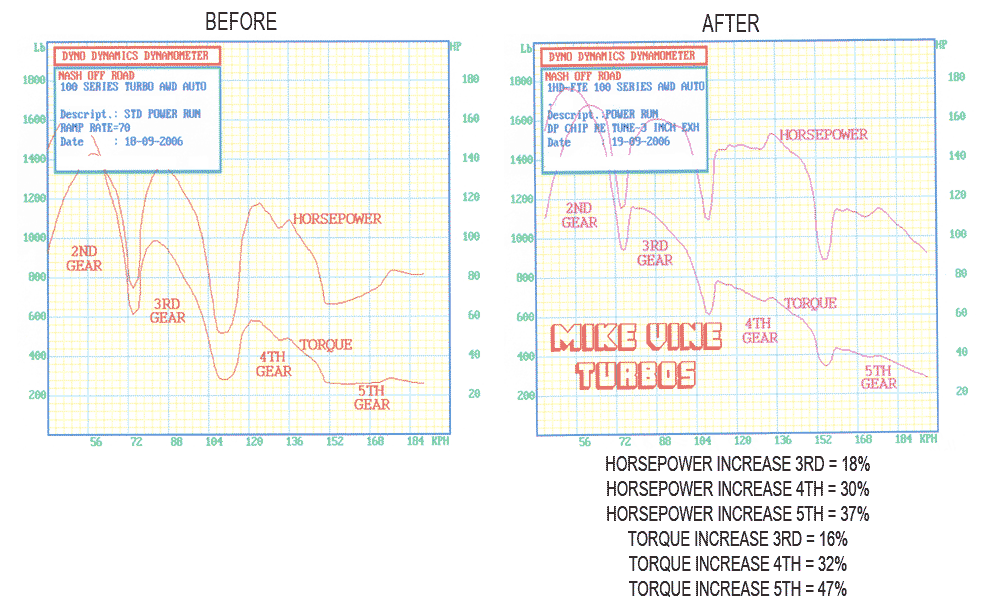

TOYOTA DIESEL LANDCRUISER WAGON IHDFTE AUTO 5SP AWD - 4.2 LITRE

Click on the image for the PDF version.

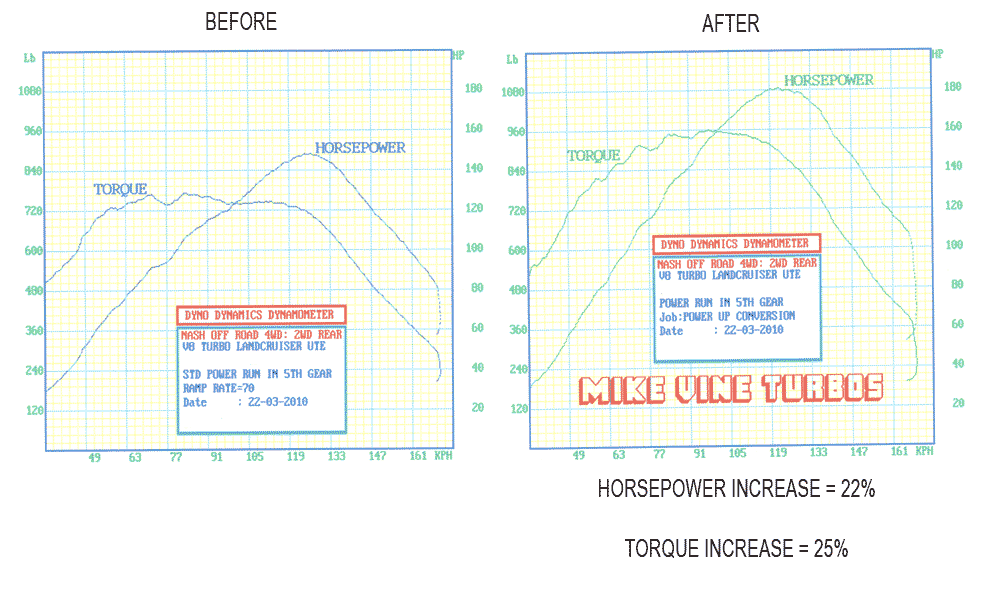

TOYOTA DIESEL LANDCRUISER V8 UTE - 4.5 LITRE

Click on the image for the PDF version.

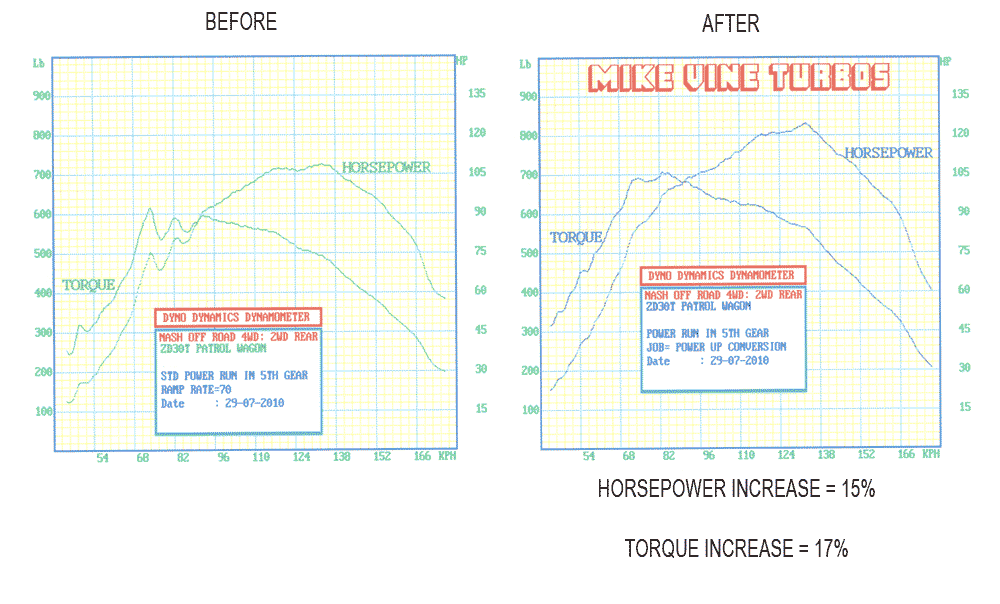

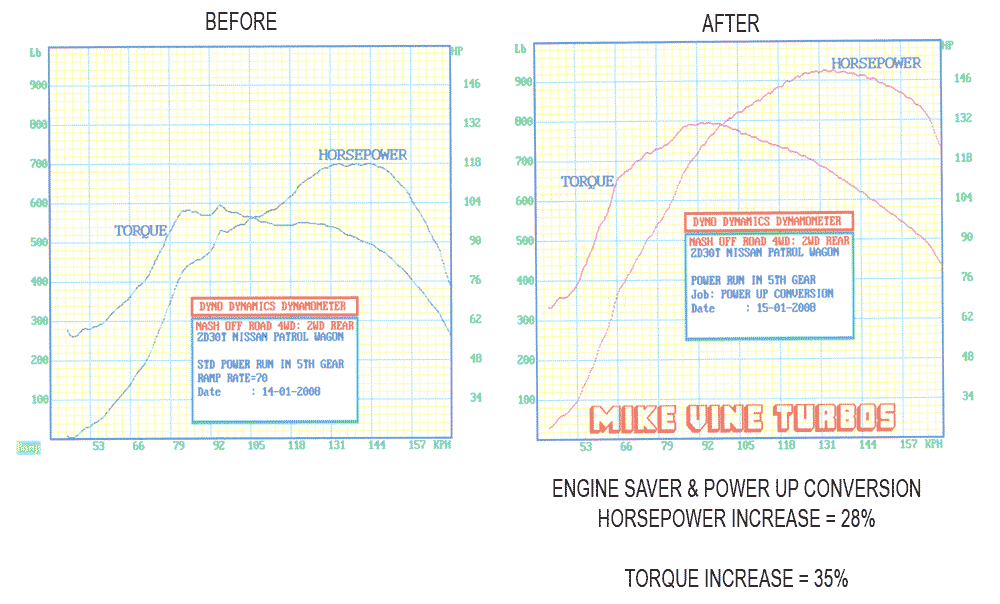

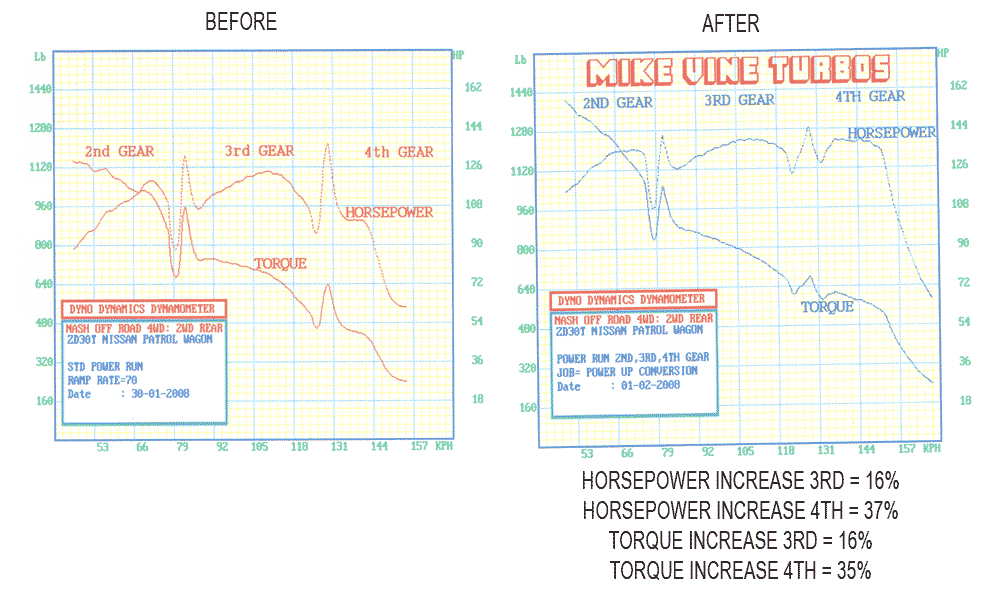

NISSAN DIESEL GU ZD30T – 3 LITRE

Click on the image for the PDF version.

NISSAN DIESEL GU ZD30T AUTO – 3 LITRE

Click on the image for the PDF version.

NISSAN DIESEL GU ZD30T COMMON RAIL – 3 LITRE

Click on the image for the PDF version.

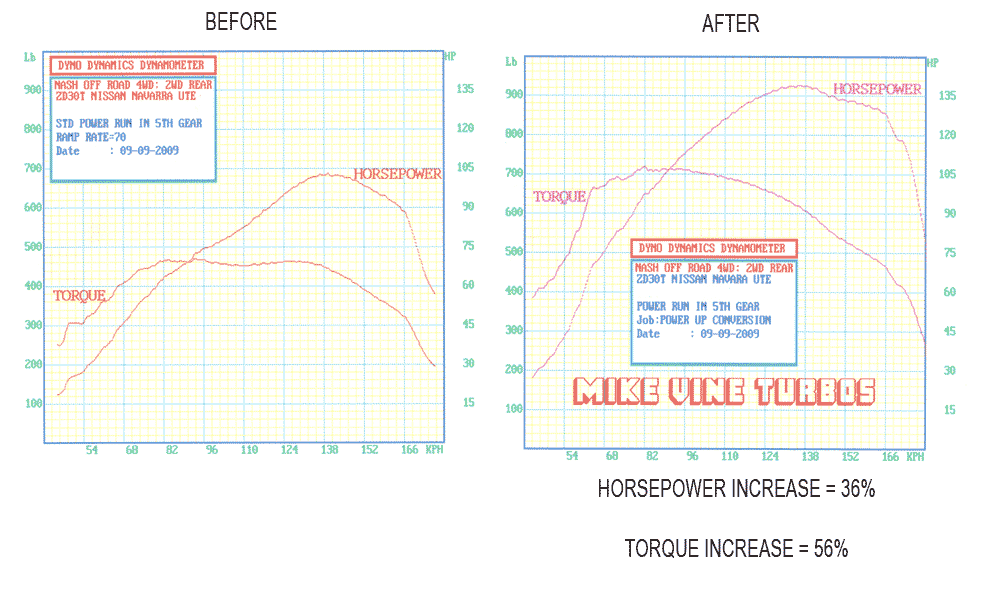

NISSAN DIESEL NAVARA ZD30T – 3 LITRE

Click on the image for the PDF version.

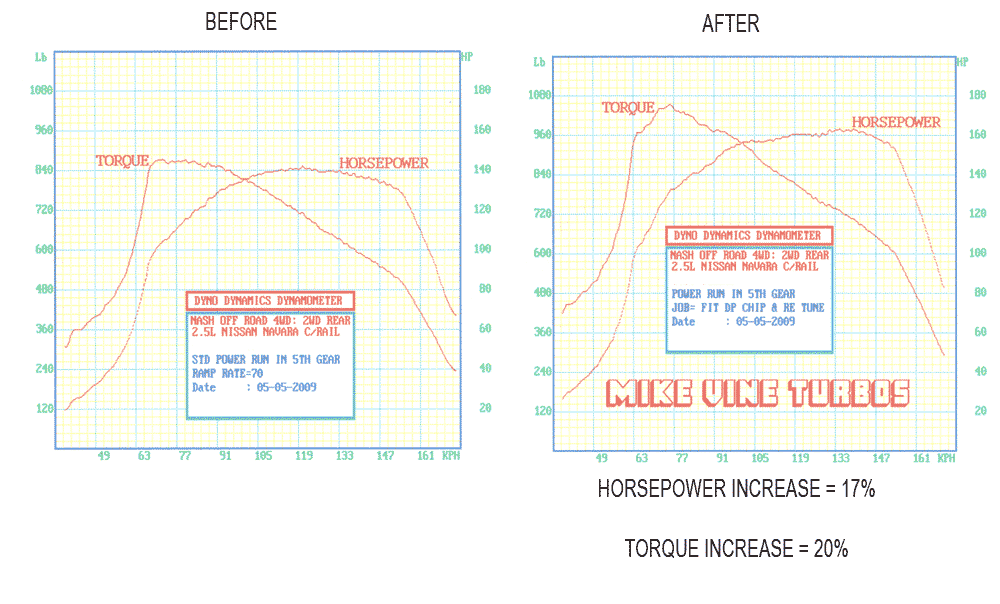

NISSAN DIESEL NAVARA CRD VNT - 2.5 LITRE

Click on the image for the PDF version.

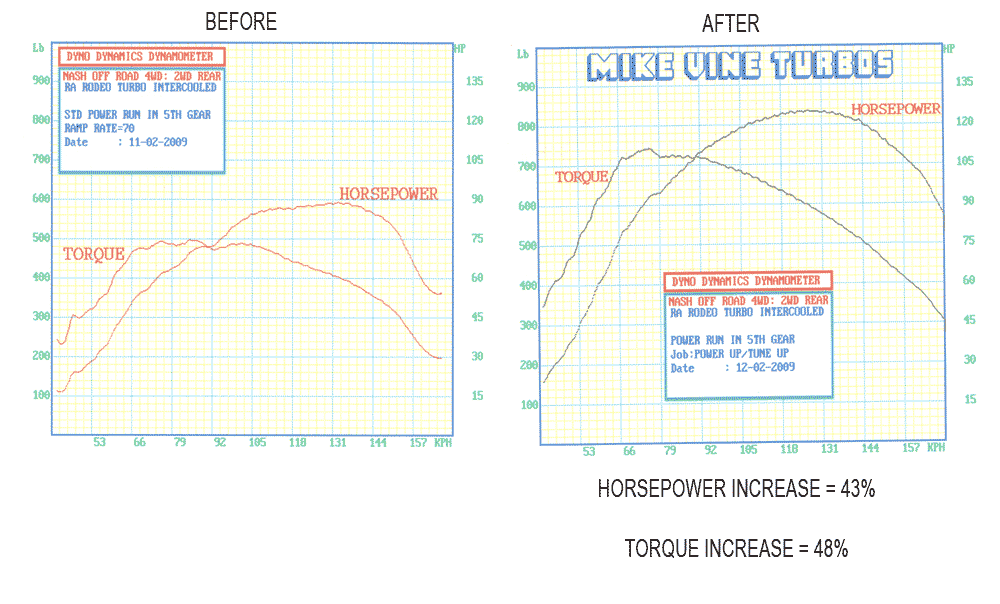

HOLDEN RODEO RA INTERCOOLED – 3 LITRE

Click on the image for the PDF version.
